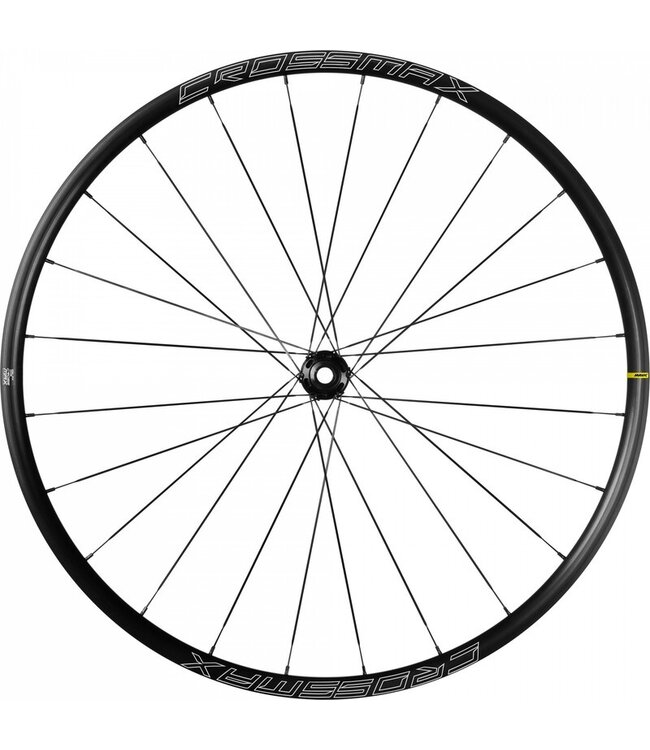

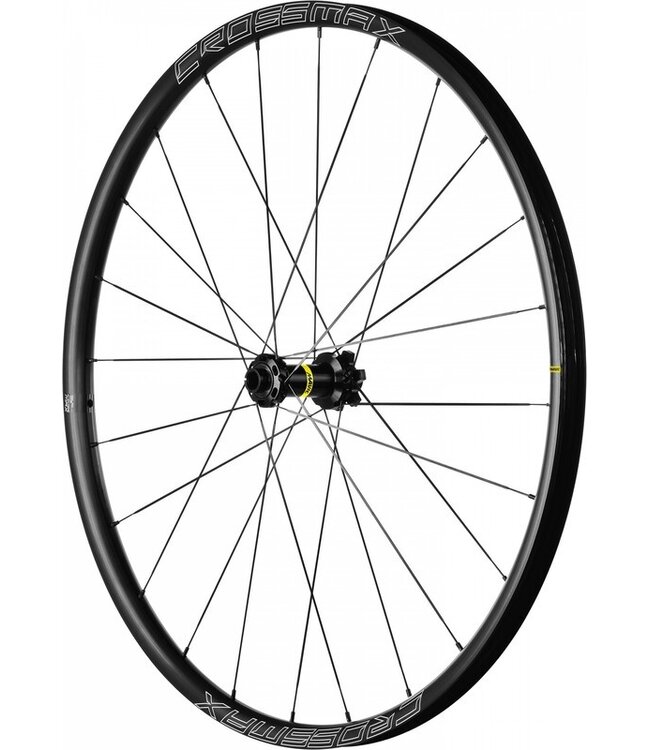

MAVIC MAVIC Front Wheel Crossmax 29 IS

Key Benefits

Light and durable

Welded rim construction for: a light and strong rim profile and a a perfectly sealed rim

Dynamic and agile

24 double butted spokes Infinity hub platform ID360 double ratchet freewheel​ system

Tubeless ready technology

A tubeless rim profile and tubeless tape make it easy to ride tubeless tires for more comfort and control

Compatible with Center Lock Brake Disc

Weight:

• 1770 grams (Pair 29")
• 820 grams (Front 29")
• 950 grams (Rear 29")

Specifications

Rims

• Material: Maxtal
• Drilling: traditional
• Valve hole diameter: 6.5 mm
• Internal width: 25 mm
• ETRTO size 29": 622x25TSS
• Use with Mavic Tubeless Tape
• Asymmetrical rim design
• UST Tubeless Ready
• SUP

Spokes

• Material: steel
• Shape: straight pull, flat, double butted
• Nipples: steel, ABS
• Count: 24 front and rear
• Lacing: front and rear crossed 2

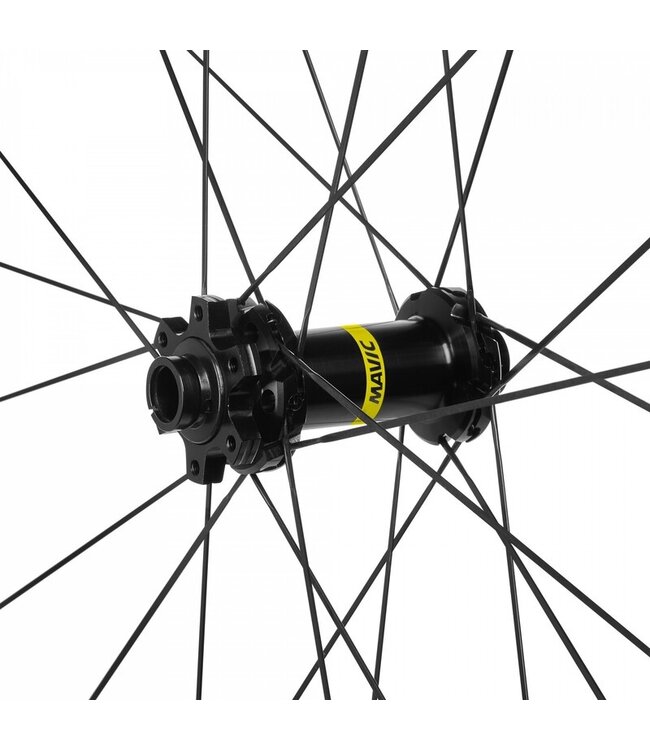

Hubs

• Hub available with 6-bolt or center lock (R) brake rotors
• Axles: Front 15X110 Boost ; Rear 12X148 Boost
• Infinity Hub
• Instant Drive 360
• QRM Auto

Versions

• Disc standard : 6 Bolts or Center Lock (R)
• Hub width : Boost only (front 110, rear 148)
• Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline

Delivered with

• UST valve and accessories
• Pre-installed tubeless rim tape
• 2 replacement spokes with each wheel

Compatibility

• Rear axle: 12x148 Boost thru axle

Intended use

• ASTM CATEGORY 3 : CROSS COUNTRY
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 150kg, bike included
• Recommended tyre sizes: 50mm to 76mm (2.0" to 3.0")
