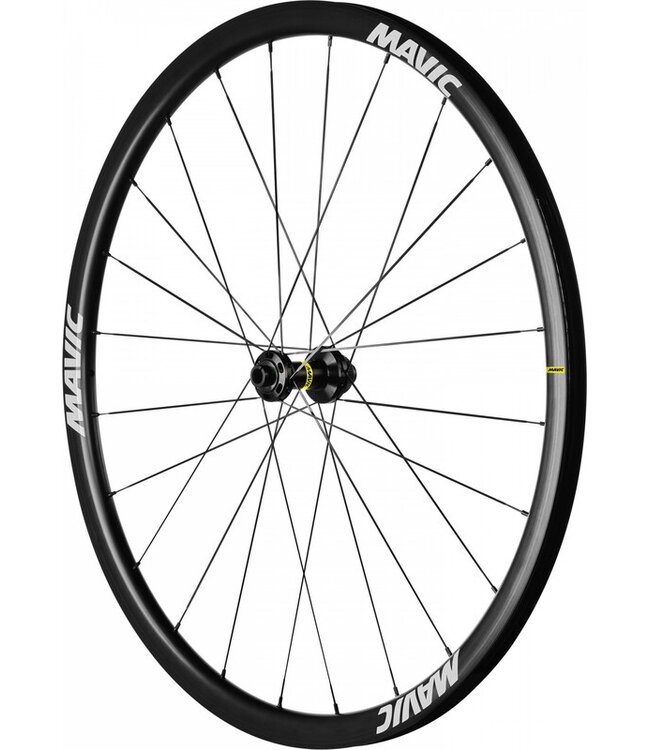

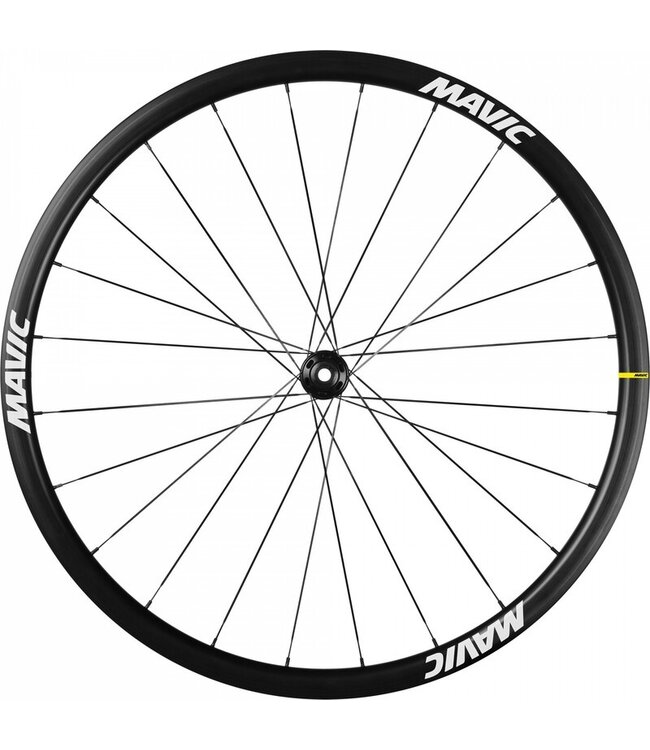

MAVIC MAVIC Front Wheel Ksyrium 30 Disc CL

Key Benefits

Light and aero rim​

30mm deep profile Optimized rim wall thickness Welded

Dynamic and agile

Double butted spokes Infinity hub design ID360 freewheel​

Refined tubeless technology helps you roll faster and smoother and is easy to set up and maintain​

Optimized UST rim bed shape Durable and perfectly airtight tape system

Weight:

• 1790 grams (Pair)

Specifications

Rims

• Material: Maxtal
• Height: 30 mm
• Drilling: traditional
• Disc brake specific profile
• Tire: UST Tubeless and tubetype
• Internal width: 19 mm
• ETRTO size: 622x19TC Road
• UST
• SUP

Spokes

• Material: steel
• Shape: straight pull, flat, double butted
• Nipples: steel, ABS
• Count: 24 front and rear
• Lacing: front and rear crossed 2, contactless

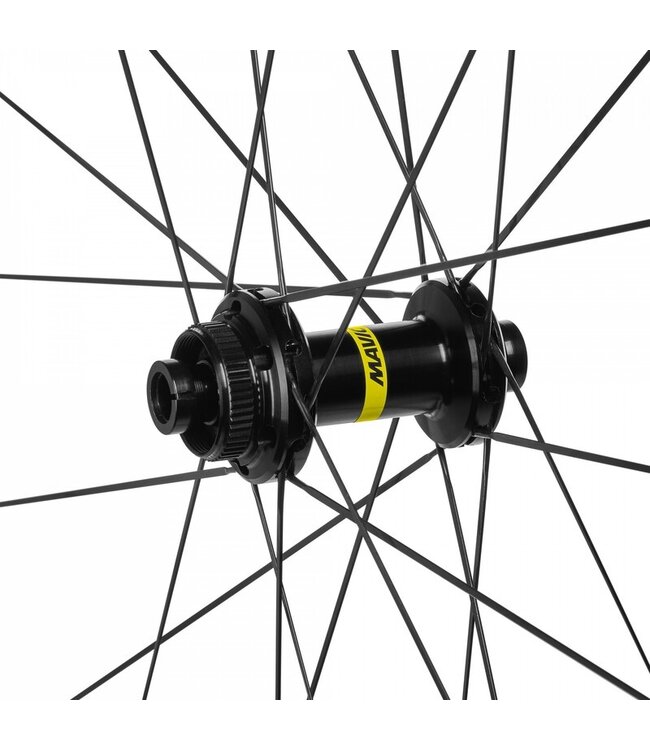

Hubs

• Front and rear bodies: aluminum
• Axle material: aluminum
• Front: Quick release and 12x100 through axle compatible
• Rear: Quick Release, 12x142 and 12x135 compatible
• Infinity Hub
• Instant Drive 360
• QRM Auto

Versions

• Disc standard: Center Lock (R) only
• Freewheel: Shimano/Sram or XD-Road

Delivered with

• Front QR adapters
• Rear QR adapters for Instant Drive 360
• UST valve and accessories
• Pre-installed tubeless rim tape
• User guide

Compatibility

• Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
• Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not
• compatible with 15mm through axles.
• Rear axle: 12mm thru axle, convertible to Quick Release with included adapters

Intended use

• ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included
• Recommended tyre sizes: 25 to 32 mm
• Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2
